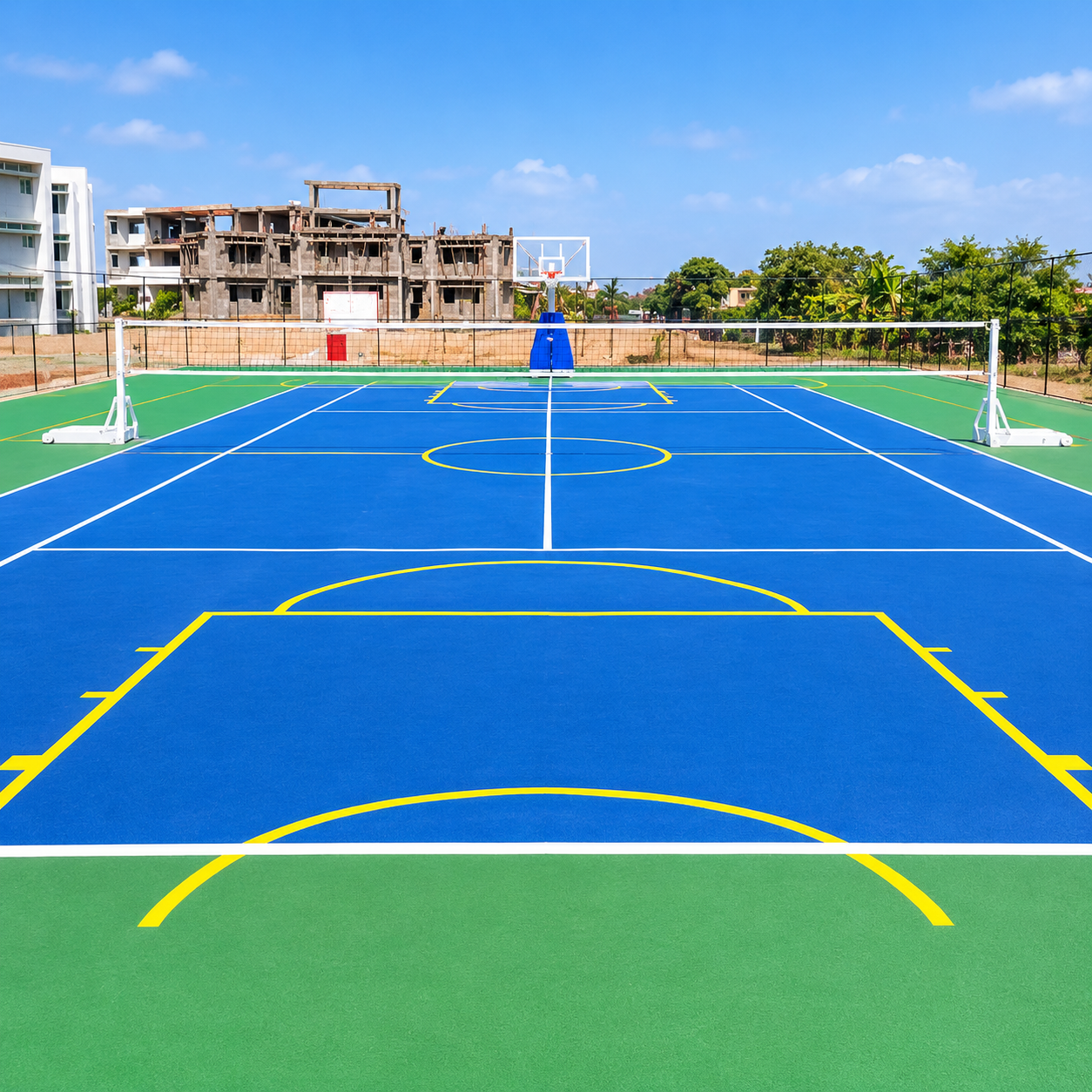

ACRYLIC FLOORING

Description

FROM UNICA – TURKEY
HEALTH PARK
Sports Surfaces…
Health Park acrylic flooring is a high-quality outdoor flooring and a cost-effective solution
for many customers. It can be used in most outdoor sports and gives a nice aesthetic and
professional look while being easy to maintain.
Health Park also provides service capabilities to ensure the flooring is installed properly,
which is critical for an outdoor floor.
Recommended Areas of Usage
 Multi-purpose outdoor facilities
 Outdoor tennis
 Outdoor basketball
 Skating
 Outdoor velodromes for biking
 Cheaper running tracks
Health Park Acrylic Products
Health Park Acrylic product is mixed and installed onsite. We have three distinct ranges:
Durabolt Standard
A 5-layer acrylic product with a thickness of up to 2 mm.
Durabolt Cushion
An 8-layer acrylic product with a thickness of up to 3 mm.

Durabolt Cushion Plus
An ultra-cushioned acrylic system consisting of an SBR Rubber Carpet followed by
Acrylic layers, with a total thickness of up to 6 mm. Can be used for outdoor and indoor
applications.

CONSTRUCTION OF SUB-BASE / BASE
PREPARATION
Common for All Systems
A typical asphalt base consists of a 6-inch pavement consisting of:
 Leveling the site
 Digging size
 Compaction of the sub-base by heavy roller (WBM)
 Anti-termite and weedicide treatment over the total area
 4-inch compacted water-bound macadam layer
 30 mm compacted Hot Mix Asphalt BM course
 20 mm compacted Hot Mix A.C. course
 Seal coat on top of A.C. coats to fill voids

5 LAYER SYSTEM — OUTDOOR
DURABOLT STANDARD
5-layer system with:
1. Acrylic latex to repair subfloor minor cracks
2. One Primer layer to improve bonding of acrylic paint with subfloor
3. One Acrylic resurfacer layer for filling and smoothing subfloor
4. Two layers of 100% acrylic base colour coat
5. One Top colour coat to protect flooring against UV rays
6. Final over line marking with acrylic paint

7 LAYER SYSTEM — OUTDOOR
DURABOLT PLUS
7-layer system with:

1. Acrylic latex to repair subfloor minor cracks
2. Two Primer layers to improve bonding of acrylic paint with subfloor
3. Two Acrylic resurfacer layers for filling and smoothing subfloor
4. Two layers of 100% acrylic base colour coat
5. OneTop colour coat to protect flooring against UV rays
6. Final over line marking with acrylic paint

SBR + CUSHION SYSTEM
OUTDOOR / INDOOR
SBR + Cushion System with:
1. Acrylic latex to repair subfloor minor cracks
2. 2-part polyurethane adhesive
3. SBR cushion pad / Sheets 3.5 mm to 4 mm thick
4. One Acrylic resurfacer layer to improve bonding of acrylic
5. Two layers of 100% acrylic base colour coat
6. Top colour coat to protect flooring against UV rays
7. Final over line marking with acrylic paint

COLOURS
 Sky Blue
 Green
 Other colour options available
ADVANTAGES
Health Park takes control of subfloor construction and analysis as well as installation,
providing you with a vertically integrated solution to ensure the best quality.
 Consumption ratios of the product are installed as per ITF standards
 Flooring can be used for multi-purpose sports
 European-made, providing higher-quality bonding capabilities
 Multiple colour options available

DISADVANTAGES / MAINTENANCE
The court has to be maintained properly with fencing around the court.

 Any usage of spike or stud shoes will damage the court.
 Eatables are not permitted inside the court as they may cause stains to the flooring.
 Bird droppings and leaf drops have to be cleaned regularly as they may cause
discolouration due to their acidic nature.
 Minor bird baths may occur in some places where rainwater gets deposited during
rain. ITF permitted allowance is up to 5 mm.
 Water should be cleaned or drained immediately after rain.
 Water should not be allowed to remain stagnant for more than 1 hour.

TECHNICAL SPECIFICATIONS
Description Durabolt Standard —
ITF 1

Durabolt PLUS —
ITF 1

Durabolt SBR+ Cushion
Plus ITF 3

Product
Intro

5 Layer, up to 2.0 mm thick
ITF Approved Acrylic
System

7 Layer, up to 3.0 mm
thick ITF Approved
Acrylic System

SBR+ Standard, up to 6.0
mm thick ITF Approved
Acrylic System

Suitable
Area

Outdoor (can be used
indoors)

Outdoor (can be used
indoors)

Outdoor (can be used
indoors)

Usage

Outdoor courts where speed
is more critical and
cushioning is not required

Outdoor courts where
cushioning is more
important

Outdoor courts where
high-end cushioning and
ball bounce are more
important
Certification ITF Certified ITF Certified ITF Certified
Benefits

Durable, minimal
maintenance, all-weather
suitable, UV-ray resistant

Durable, minimal
maintenance, all-
weather suitable, UV-
ray resistant

Durable, minimal
maintenance, all-weather
suitable, UV-ray resistant

Import Time 8 weeks if product has to be

imported

8 weeks if product has
to be imported

8 weeks if product has to
be imported

Warranty

1 year against
manufacturing defects such
as delamination or drastic
decolouration

1 year 1 year

Subfloor Asphalt preferred / concrete
possible but not as good

Asphalt preferred /
concrete possible but
not as good

Asphalt preferred /
concrete possible but not
as good
Thickness Up to 2 mm Up to 3 mm Up to 6 mm
Weight 2.39 kg/m² 3.89 kg/m² 5.89 kg/m²
Maintenance Guidelines
Weekly or as required:

The Court has to be maintained periodically by cleaning it with plain water as and when the
court gets dusty.No eatables , Colas should to be allowed inside the court as the spilling may
cause stain to the surface ..Any stain caused due to spilling of any Petroleum products will
damage the surface . Leaves or Bird drops should be cleaned then and there itself as it may
cause stains .
MS HEALTH PARH dont give any warranty for stains caused due to faulty maintenance
The surface should be cleared of all dirt or leaves using a brush. Chewing gum should be
